JNKEVO New Listing Big Size Machine Cnc Laser Fiber Cutting Metal From China

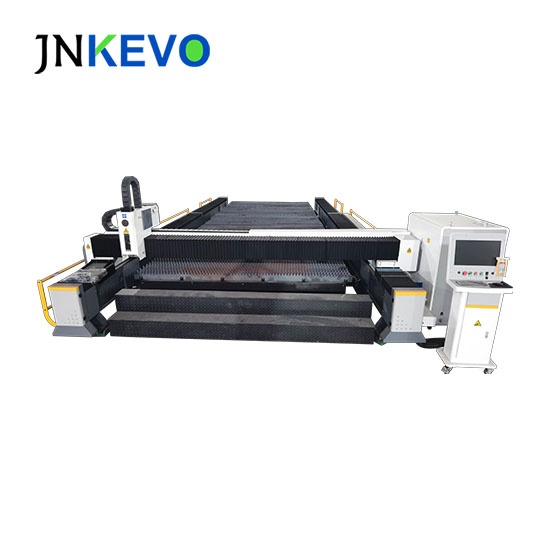

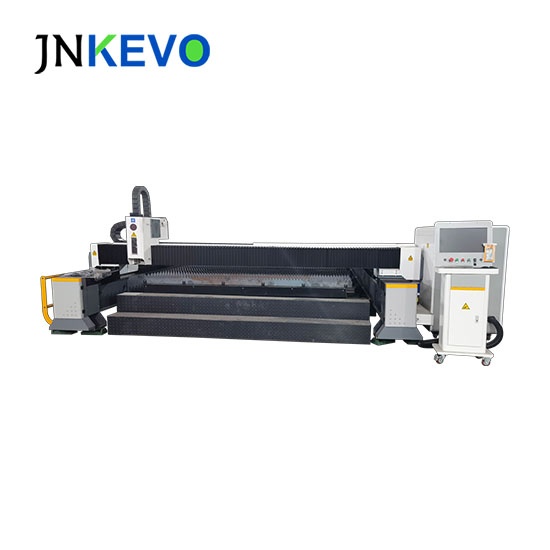

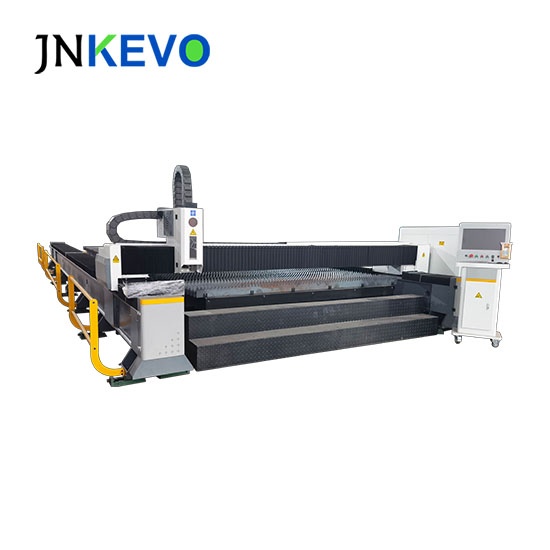

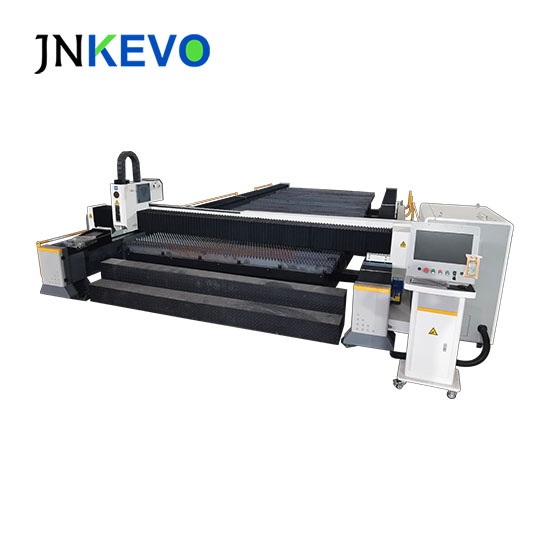

Gantry type metal sheet fiber laser cutting machine features
1. Fiber laser cutting speed is fast, low operation and maintenance cost, and easy to learn.
2. The machine adopts the dynamic dragon door structure, gear rack and linear guide, and the transmission is stable, and the precision is high.
3. The machine tool and the beam pass high temperature, precision gantry, can maintain high strength, high precision, and long-term work is not deformable.
4. X, Y, Z axis use imported servo motors, high precision, high speed, large torque, high inertia, and stable and durable. The high speed and acceleration of the whole machine are guaranteed.
5. The special CNC system of Shanghai Baizu fiber laser cutting machine based on Windows operating system is integrated with laser cutting control dedicated function modules, powerful, human-machine interface, simple operation.
6. Mobile gantry structural machine tool, the whole outer surrounding structure, can maintain a long time, good stability, safety, automatic switching workbench, equipment can be processed on the side, convenient and fast, good compatibility, strong stability , more convenient maintenance, and more powerful cutting functions.
Item
|
Sheet Fiber Laser Cutter Parameters
|
Laser Power
|
500W - 20,000W
|
Laser Generator
|
IPG, JPT, MAX, Raycus
|
Cutting Size
|
Width: 1500 - 2500mm, Length: 3000 - 6000mm
|
Max Running Speed
|
100m / min
|
Max Acceleration
|
1G
|
Repeatability
|
±0.03mm / 1000m
|
Cutting Material Thickness
|
0.3 - 40mm ( carbon steel )
|
Control System
|
CypCut / Weihong
|
Consumption Power
|
Depends on the laser power
|
Power Supply
|
380V / 50Hz
|
Continuous Working Time
|
24 hours
|
Machine and configurations can also be customized according to your requirements.
|
Please feel free to CONTACT WITH US !
