Products > Nonmetal Co2 Laser Cutter > > 6040 Small Non Metal Co2 Laser Cutting Machines

Product name : 6040 Small Non Metal Co2 Laser Cutting Machines

Product No. : 201913113011

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

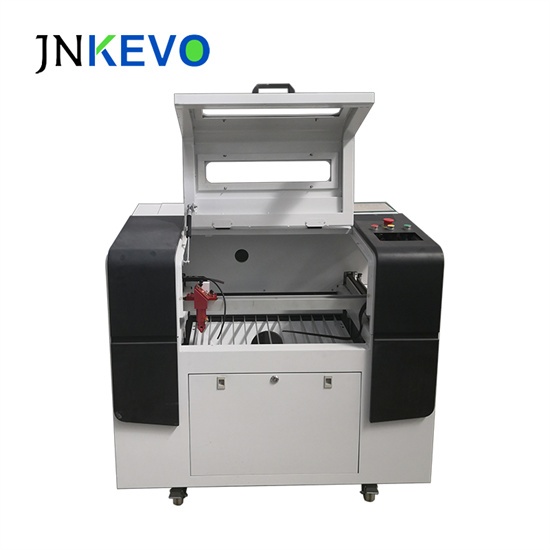

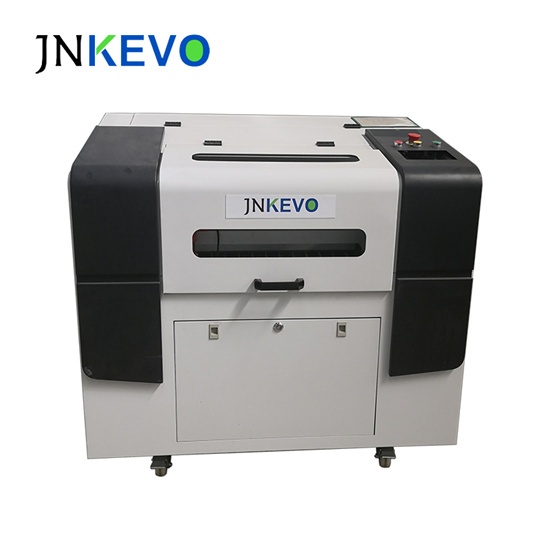

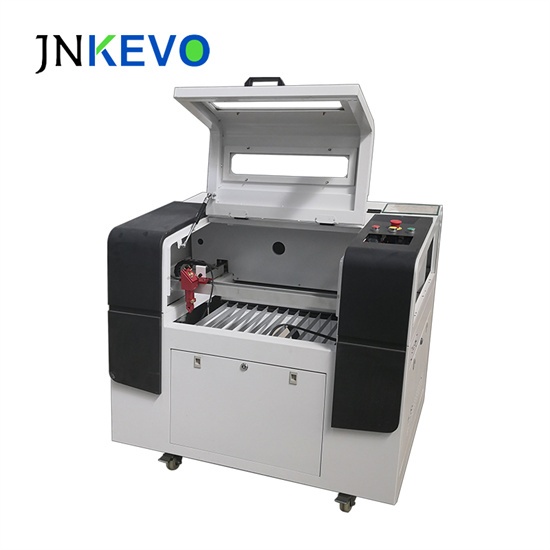

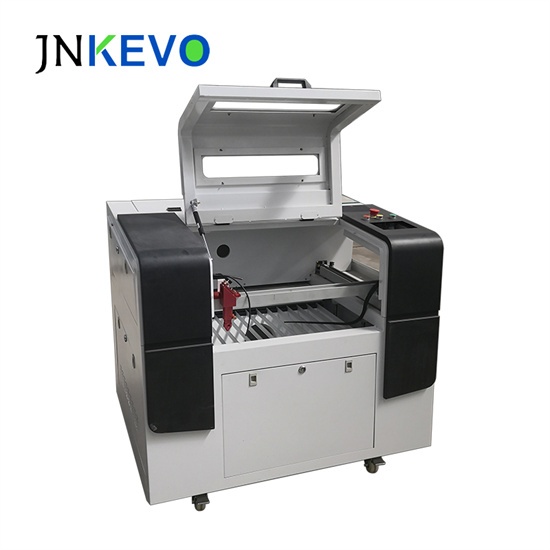

6040 Small Non Metal Co2 Laser Cutting Machines

Features

1. Good quality laser tube, long lifetime, more powerful, good quality laser power supply.
2. Red Light position,making locating more convenient and precise.
3. Machines with RuiDa Nano control panel can work without computer.
4. Beautiful and strong outer casing.
5. Various working areas from 300x200mm to 1300x2500mm.

Application

Applicable for most no-metal materials, such as acrylic, double-color sheet, MDF, leather, colth, rubber, wooden boards, bamboo products, organic glass, plastics, marble, jade, crystal, etc

Main Configurations
Working area	600*400mm	Power supply	220V 50HZ
Laser tube	60/80/130/150w	Cutting ability	0-30mm acrylic, 0-20mm wood
Professional laser head	With red light point	Table	Blade table or honeycomb table
Linear square rail	Original Taiwan imported	Belt	Dongfeng
Driver and motor	YAKO driver and stepper motor	Lens and mirrors	Original imported from Singapore
Control system	Original Ruida 6442s	Software	RDworksV8
Water chiller	Water pump/water chiller	Air pump	500W exhaust fan
Connecting and operating videos	Manual and U disk	--	--
Parameters
Working area	600*400mm	Laser power	Beijing Reci W8 ( 150-180W )
Laser type	Co2 glass laser tube	Software	RDworksV8
Machine dimension	184013601100mm	Engraving speed	1000mm/s
Cutting speed	500mm/s	Cutting thickness	Determined by materials
Position	4000DPI	Position system	Red dot
Interface	USB	Resolution accuracy	±0.1mm
Support graphic format	DST, PLT, BMP, DXF	Gross power	1000W
Driving mode	DC 0.8A 24V stepper motor	Cooling mode	Circulation water cooling
Working voltage	AC220V / 50HZ or 110V / 60HZ or depend on customer	Operating temperature	0-45°C
Operating humidity	5-95%	Packing	Standard free fumigation wooden box for exportation
