Product name : Non Metal Co2 Laser Cutting Machine KVN1325
Product No. : 201913113559
|
| Details: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

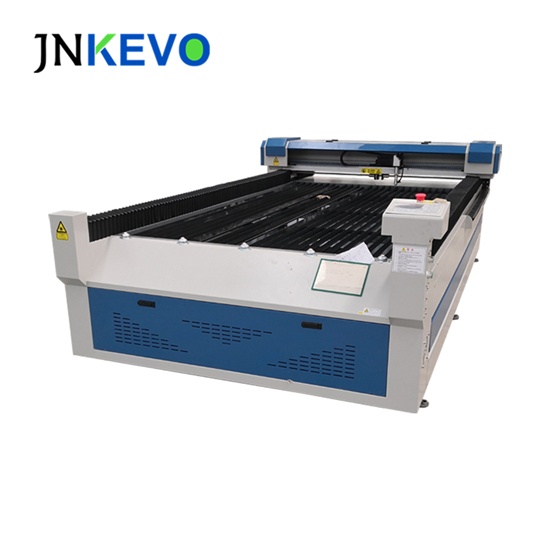

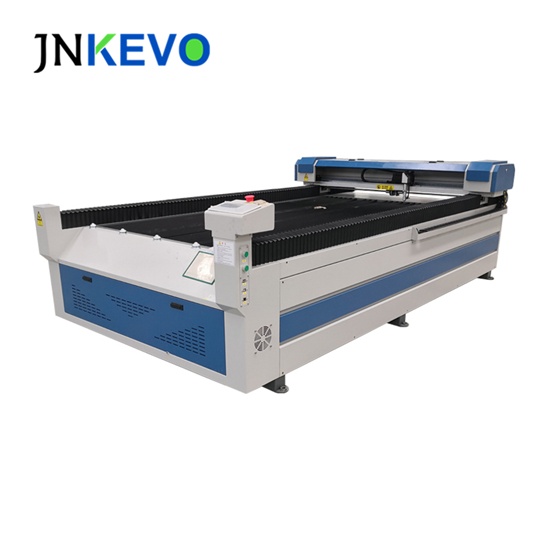

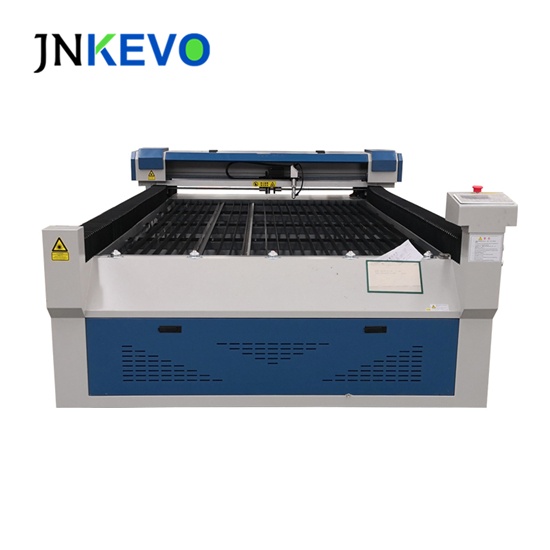

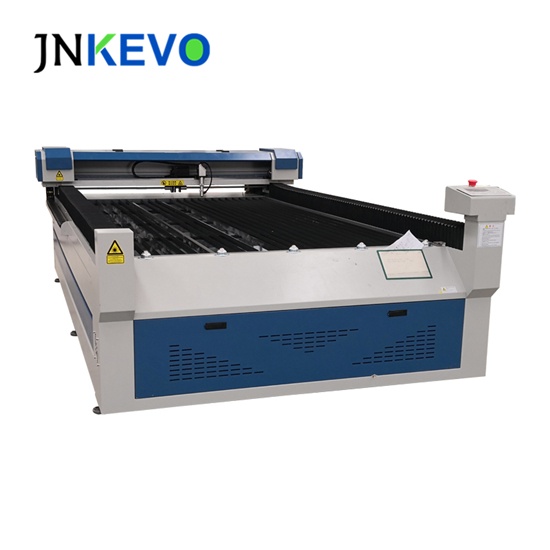

Non Metal Co2 Laser Cutting Machine KVN1325
Features1.Equipped with the RECI laser tube, the service life is 10000 hours. 2.Ruida or Leetro control system, Hiwin guide rails and high quality belt transmission. 3.The USB interface supports data transmission for quick completion. 4.Lens and mirror imported from Singapore 5.Transmit files directly from CorelDraw, AutoCAD, USB 2.0 interace output with high speed supports offline operation. 6.Summary of operation of the power cut-off point during power-up. 7.Lift table, rotating device, red dot, vacuum, etc. Are at option.
Application
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Configurations |
|||
|
Working area |
1300*2500mm |
Power supply |
220V 50HZ |
|
Laser tube |
60/80/130/150w |
Cutting ability |
0-30mm acrylic, 0-20mm wood |
|
Professional laser head |
With red light point |
Table |
Blade table or honeycomb table |
|
Linear square rail |
Original Taiwan imported |
Belt |
Dongfeng |
|
Driver and motor |
YAKO driver and stepper motor |
Lens and mirrors |
Original imported from Singapore |
|
Control system |
Original Ruida 6442s |
Software |
RDworksV8 |
|
Water chiller |
Water pump/water chiller |
Air pump |
500W exhaust fan |
|
Connecting and operating videos |
Manual and U disk |
-- |
-- |
|
Parameters |
|||
|
Working area |
1300*2500mm |
Laser power |
Beijing Reci W8 ( 150-180W ) |
|
Laser type |
Co2 glass laser tube |
Software |
RDworksV8 |
|
Machine dimension |
1840*1360*1100mm |
Engraving speed |
1000mm/s |
|
Cutting speed |
500mm/s |
Cutting thickness |
Determined by materials |
|
Position |
4000DPI |
Position system |
Red dot |
|
Interface |
USB |
Resolution accuracy |
±0.1mm |
|
Support graphic format |
DST, PLT, BMP, DXF |
Gross power |
1000W |
|
Driving mode |
DC 0.8A 24V stepper motor |
Cooling mode |
Circulation water cooling |
|
Working voltage |
AC220V / 50HZ or 110V / 60HZ or depend on customer |
Operating temperature |
0-45°C |
|
Operating humidity |
5-95% |
Packing |
Standard free fumigation wooden box for exportation |
